ToolIt Cobot and Robot tooling

This tooling is designed for robot and cobot application with attention to light weight and high redundancy, to conform to ISO 20218-I 2016

schermafbeelding

navigeren door de afbeeldingen kan met de pijltjes toetsen
Vacuum Tooling: general use
Vacuum Tooling: general use
cobotdocumentatie

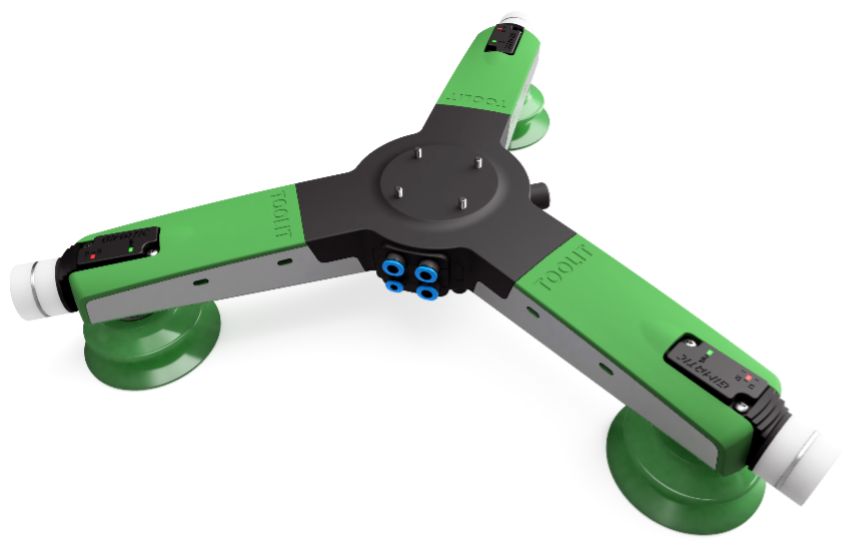

Weight: we use a light composite aluminium frame to form a stiff and strong backbone for the tooling. We have three standard frame sizes with each multiple positions for suction grips

Diameter (mm)Weight (kg)
1: 3S 2501,8
2: 3S 3501,9
3: 3S 5002,0

Suction cups : 80 mm rubber. Each cup has its own vacuum generator and its own 5/3 control valve allowing a fast release with a blow-off function. All three suction systems are fully independent and a single cup is normally capable of holding the load (depending on the payload surface) The working load is calculated for vertical lifting of the load with a safety factor >4 on a smooth, flat an impermeable surface. Each suction cup is rated at 30 kg at 90 degrees to the payload surface with an optimal payload surface.

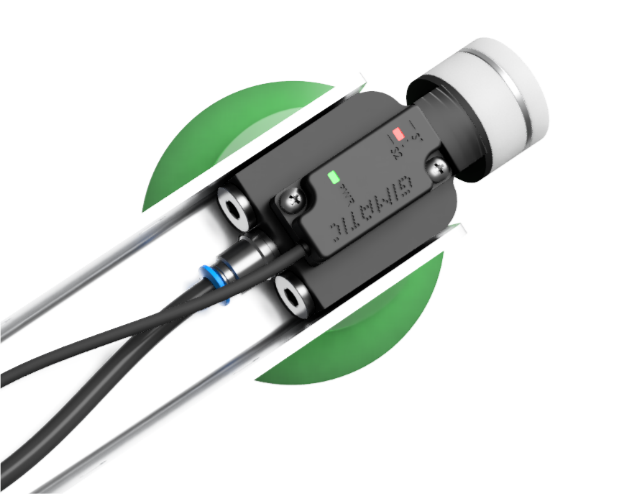

Included: Controls pack:

Pneumatic controls 3 point tooling:

  • Air pressure signal P=/> 6Bar.
  • 6mm 3/2 main air feed control (always on during use).
  • 3 x 5/3 control valve 3mm voor vacuum venturi.
airpressure

Options:

Air reserve: 1 litre back up supply with met check valve. This can ensure that the vacuum is maintained for several seconds after the air supply fails. This allows the cobot to set down the payload before the vacuum fails in the case of a failing air supply.

Three individual vacuum switches: As soon as one of the suction cups fails to attain a correct vacuum this will be detected and communicated to the cobot/robot.

Custom frame sizes: The suction cups can be positioned in several positions on the frame. In case a custom frame size is required any custom frame size up to 600 mm diameter is possible at a fixed surcharge.

Special Tooling

specialtoolign

Our tooling is designed for purpose rather than multi-purpose. We believe tooling should be fit for purpose and we designed this tooling for CAD-CAM manufacture. We can easily adapt our design to suit your purpose and manufacture a competitive tooling to fit your specific requirement. For special applications we can design tooling to suit your needs for any robot application up to 500 kg payload. With over thirty years' experience in industrial handling we have a large library of proven solutions.

Contact us!

Should you have any questions or enquiries on how Wadcon could improve your industrial processes, please don’t hesitate to contact us and we shall revert fast.
